Installing a split system air conditioner is one of the most effective ways to maintain year-round comfort in your Australian home. Unlike complex ducted systems, split system installation offers a cost-effective solution that can be completed within a single day, making it the preferred choice for homeowners seeking efficient climate control.

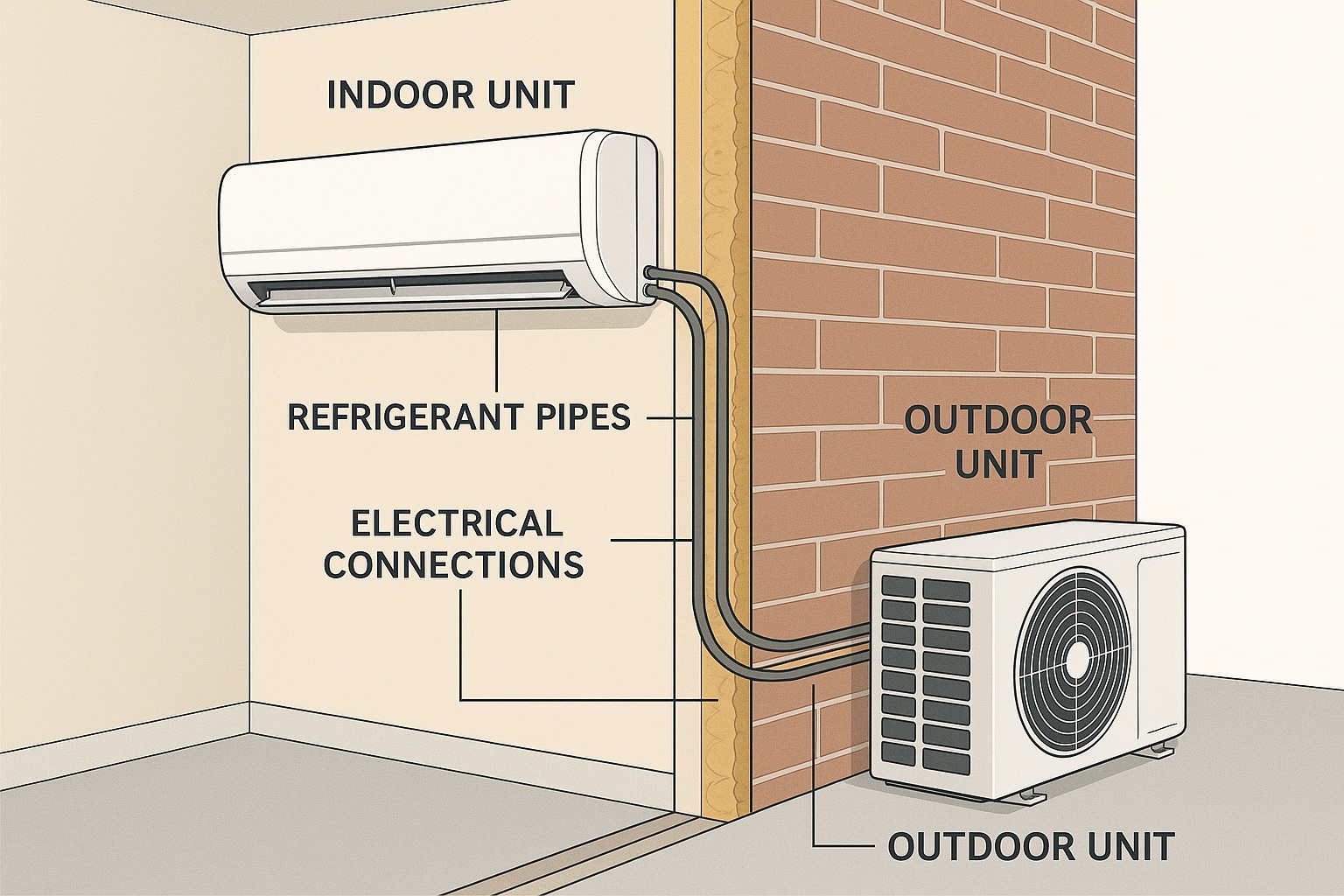

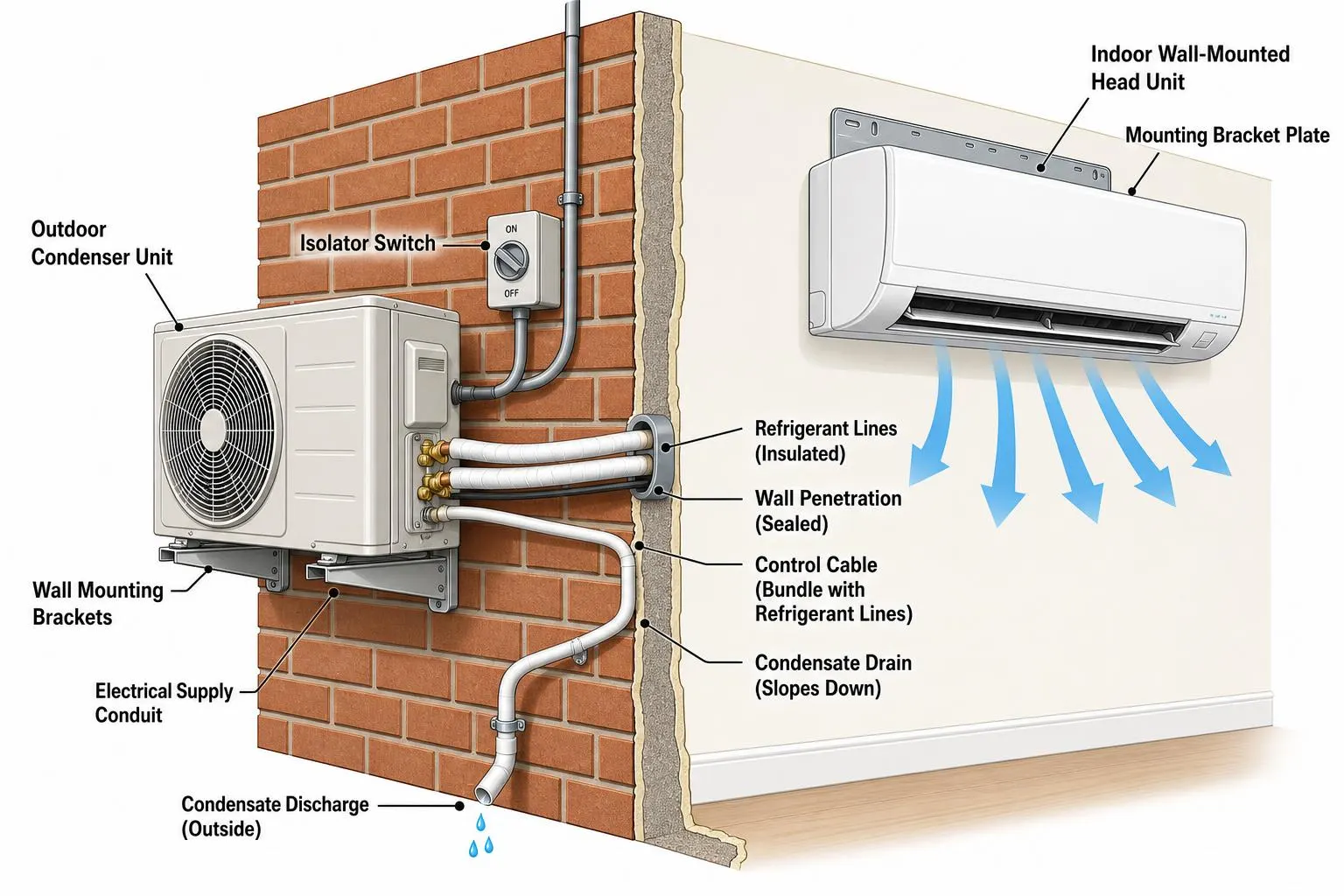

Split system air conditioner installation diagram with indoor and outdoor units
Understanding Split System Air Conditioning
A split system air conditioner consists of two main components that work together to provide optimal indoor climate control. The system gets its name from being “split” between an indoor unit (evaporator) and an outdoor unit (condenser). This design eliminates the need for extensive ductwork, making split system installation significantly more straightforward than ducted alternatives.
Split system aircon installation typically involves mounting the indoor unit high on an interior wall, while the outdoor unit is positioned outside the property. These units are connected by refrigerant pipes, electrical wiring, and a drainage line that passes through a small hole in the wall.
Key Components of a Split System
The indoor unit comprises the evaporator coil, air filter, and fan system, which circulates conditioned air throughout the room. Modern units often include advanced features such as air purification technology and smart connectivity options.
The outdoor unit houses the compressor, condenser coil, and fan that expels heat from your home. This unit requires proper ventilation and positioning to ensure optimal performance and longevity.
Pre-Installation Planning and Considerations
Successful split system installation begins with thorough planning and assessment of your specific requirements. Several critical factors must be evaluated before installation day to ensure optimal performance and compliance with Australian standards.
Choosing the Right System Size
Proper sizing is crucial for energy efficiency and performance. The general rule is approximately 0.15 kW of power per square metre of floor space. An oversized system will consume excess energy and cycle frequently, while an undersized system will struggle to maintain desired temperatures and may suffer premature wear.
Location Selection for Indoor Unit
The ideal location for your split system indoor unit should be:
- On an exterior wall for easier connection to the outdoor unit
- Positioned high on the wall, approximately 2 metres from the ground
- Centrally located for optimal air circulation
- Away from direct sunlight and heat sources
- Clear of obstructions with at least 15cm clearance on all sides
Outdoor Unit Positioning
The outdoor unit installation requires careful consideration of several factors:
- Level, stable surface (concrete slab or mounting brackets)
- Adequate ventilation with at least one metre clearance on all sides
- Protection from direct sunlight and severe weather
- Distance from bedrooms and living areas to minimise noise
- Accessibility for future maintenance and repairs
Professional Installation Requirements
Professional split system installation is mandatory in Australia, as it involves electrical work and refrigerant handling that requires proper licensing. Only qualified technicians with appropriate certifications can legally install these systems.

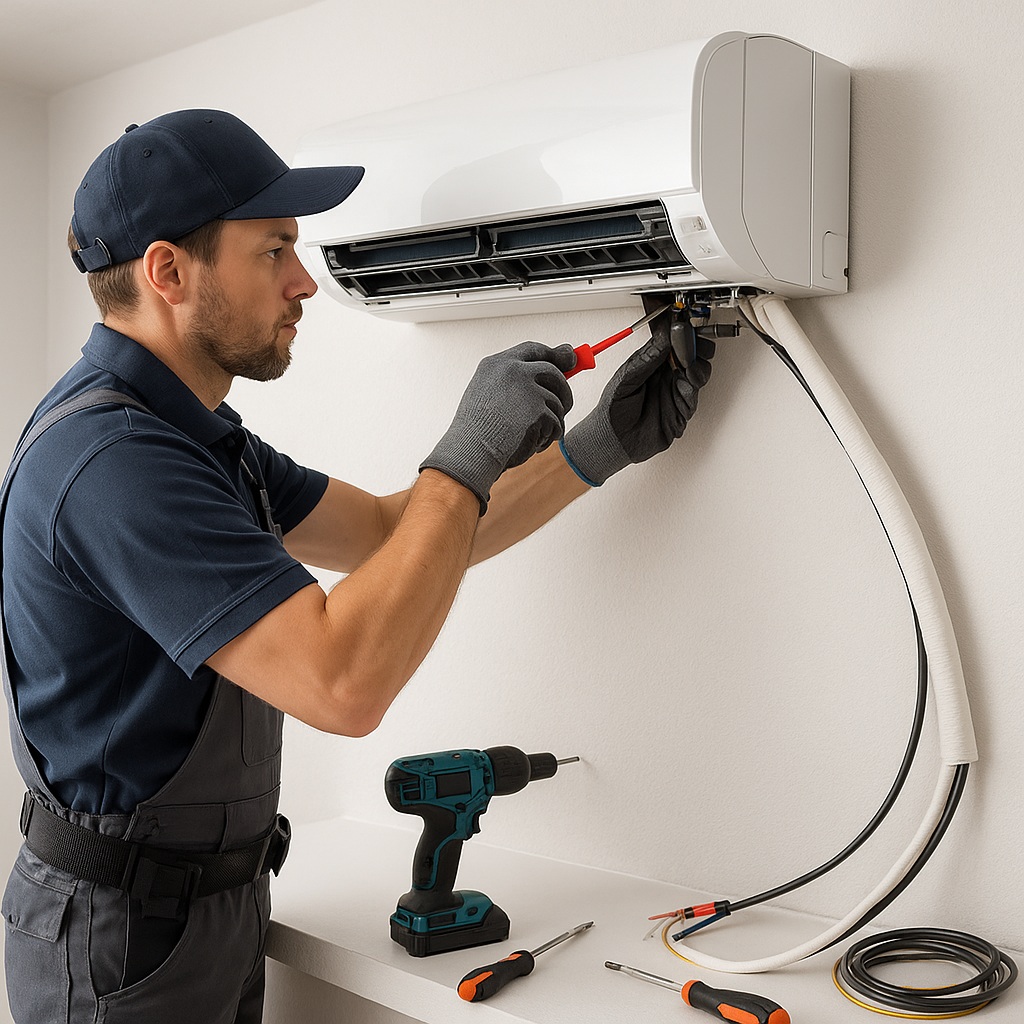

Professional technician installing a split system air conditioner indoor unit
Licensing and Qualifications
Installers must hold either a full Refrigeration and Air Conditioning (RAC) licence or a restricted Heat Pump – Split Systems licence. Additionally, electrical work must be performed by licensed electricians to ensure compliance with Australian Standards.
Australian Standards Compliance
Split system installation must comply with various Australian Standards, including AS/NZS 3666 and AS/NZS 5149, which cover electrical safety, mechanical ventilation, and refrigerant handling. These standards ensure safe operation, energy efficiency, and environmental protection.
Step-by-Step Installation Process
The split system installation process typically follows these sequential steps, which professional technicians complete with precision and expertise.
Stage 1: Site Preparation and Setup
Professional installers begin by protecting your home with drop sheets and removing any furniture from the installation area. They then mark the precise location for the indoor unit using the manufacturer’s template, ensuring proper positioning and level mounting.
Stage 2: Indoor Unit Installation
Mounting the Indoor Unit
Technicians secure the mounting bracket to the wall using appropriate anchors and screws, ensuring it can support the unit’s weight for years to come. The bracket must be perfectly level and firmly attached to a structurally sound wall.
Creating Wall Penetration
A hole is carefully drilled through the exterior wall to accommodate refrigerant pipes, electrical cables, and the drainage line. This penetration is typically 65-80mm in diameter, depending on the pipe sizes required.
Connecting Services
The indoor unit is connected to the electrical supply, refrigerant lines, and drainage systems before being mounted on the bracket. All connections are made according to manufacturer specifications and Australian Standards.
Stage 3: Outdoor Unit Installation
Site Preparation
The outdoor unit is positioned on a level concrete slab or securely mounted using brackets. Proper positioning ensures optimal performance and reduces vibration and noise during operation.

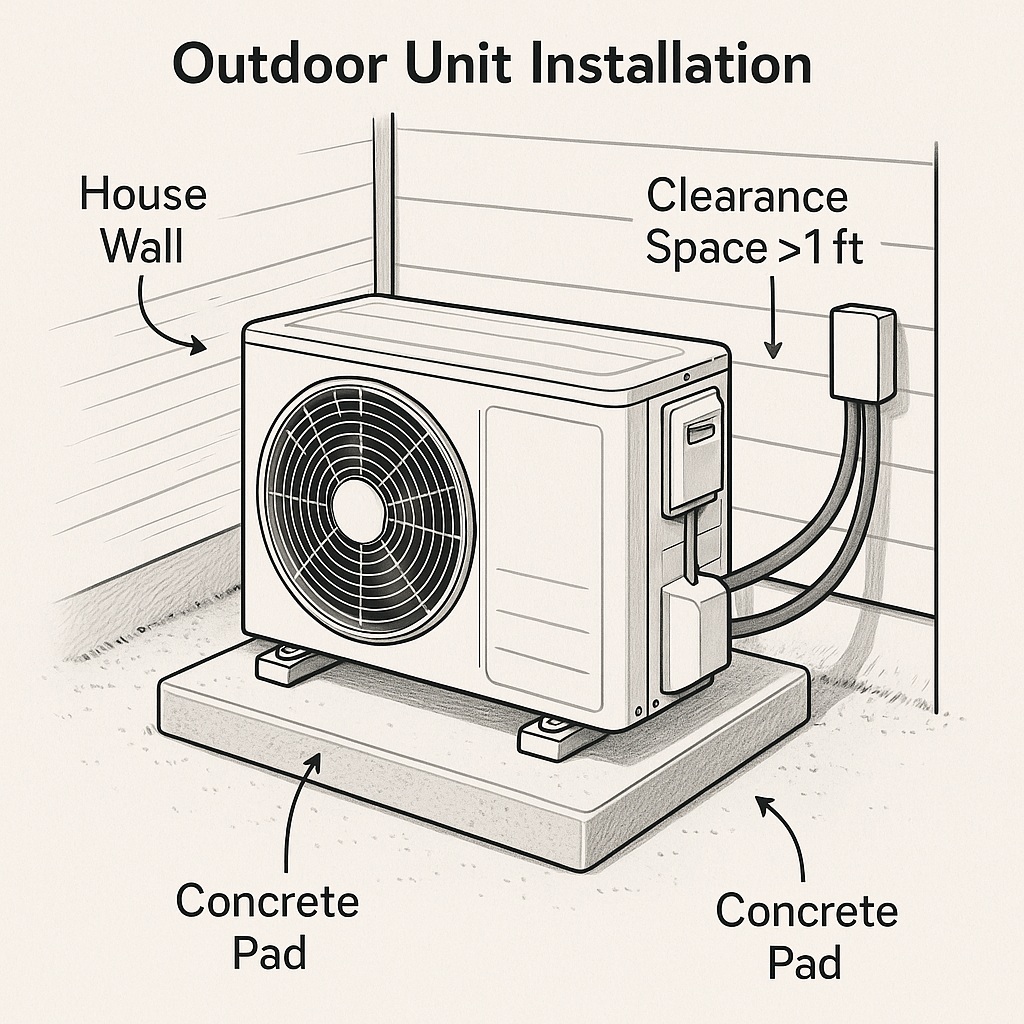

Split system outdoor unit is properly installed with adequate clearance
Refrigerant Line Connections
Copper refrigerant lines are connected using specialised flaring tools and torque specifications provided by the manufacturer. These connections are critical for system performance and must be leak-free.
Electrical Connections
Licensed electricians connect the outdoor unit to the electrical supply, installing isolator switches as required by Australian Standards. This ensures safe operation and enables proper maintenance access.
Stage 4: System Commissioning and Testing
Vacuum Testing
Professional technicians use vacuum pumps to remove air and moisture from the refrigerant lines before releasing the factory-sealed refrigerant. This critical step ensures optimal system performance and prevents contamination.
Performance Testing
The complete system undergoes thorough testing to verify proper operation, including temperature differential testing, electrical load verification, and leak detection. Any issues are addressed before final commissioning.
Cost Factors and Investment Considerations
Split system installation cost varies significantly based on multiple factors, making it essential to understand these variables when budgeting for your project.
Installation Cost Breakdown
| System Capacity | Unit Cost Range | Installation Cost Range |
|---|---|---|
| 2.5-3.5 kW | $600 – $2,000 | $700 – $850 |
| 5.0-7.0 kW | $1,500 – $4,000 | $900 – $1,200 |
| 8.0+ kW | $3,000 – $5,000 | $1,200 – $2,000+ |
*Source: Industry data from multiple Australian installers *^17^19
Factors Affecting Installation Costs
System Complexity
Multi-head installations connecting multiple indoor units to one outdoor unit increase both equipment and labour costs. Back-to-back installations where units are positioned on opposite sides of the same wall are typically less expensive than installations requiring extended pipe runs.
Location-Specific Factors
Coastal locations may require corrosion-resistant coatings, adding to system costs. Difficult access areas, second-storey installations, or complex electrical upgrades can significantly impact labour costs.
Building Requirements
Some installations may require building permits or electrical upgrades to accommodate the new system. Older homes might need switchboard modifications or additional electrical circuits.
Energy Efficiency and Performance Optimisation
Modern split system air conditioners offer exceptional energy efficiency when properly installed and maintained. Understanding energy ratings and efficiency features helps maximise your investment’s value.
Energy Star Ratings
Australian energy labels display seasonal efficiency ratings for three climate zones: hot, average, and cold. Systems with higher star ratings consume less energy while delivering superior performance.
Climate Zone Classifications:
- Hot: Brisbane, Darwin
- Average: Adelaide, Perth, Sydney
- Cold: Melbourne, Canberra, Hobart
Inverter Technology Benefits
Inverter split systems offer superior efficiency by gradually adjusting compressor speed rather than constantly cycling on and off. This technology provides:
- Reduced energy consumption by up to 30%
- More consistent temperature control
- Quieter operation
- Extended component lifespan
Maintenance and Longevity
Proper maintenance ensures your split system installation provides reliable service for 10-15 years. Regular upkeep protects your investment and maintains optimal performance throughout the system’s lifespan.
Essential Maintenance Tasks
Filter Cleaning and Replacement
Indoor unit filters should be cleaned monthly during peak usage periods. Clogged filters reduce efficiency and can damage system components over time.
Professional Service Requirements
Annual professional maintenance includes refrigerant level checks, electrical connection inspection, and component cleaning. Licensed technicians can identify potential issues before they become costly repairs.
Outdoor Unit Care
Keep the outdoor unit clear of debris, vegetation, and obstructions. Ensure adequate clearance is maintained for proper airflow and heat dissipation.
Safety and Regulatory Compliance
Split system installation must comply with various Australian regulations covering electrical safety, refrigerant handling, and building codes.
Electrical Safety Requirements
All electrical work must be performed by licensed electricians using appropriate safety switches and circuit protection. Improper electrical installation poses serious safety risks, including fire and electrocution hazards.
Refrigerant Handling Regulations
Refrigerant work requires appropriate licensing and adherence to environmental regulations. Improper handling can result in system damage, environmental harm, and legal penalties.
Building and Planning Considerations
Some installations may require council approval or building permits, particularly for heritage areas or body corporate properties. Check local regulations before proceeding with installation.
Common Installation Challenges and Solutions
Professional installers regularly encounter specific challenges that require expertise and proper equipment to resolve effectively.
Structural Considerations
Wall Strength Assessment
Not all walls are suitable for supporting split system indoor units. False walls, uneven surfaces, or foam-rendered walls may require additional structural support. Professional assessment ensures safe, secure mounting.
Pipe Run Complications
Extended distances between indoor and outdoor units (over 15 metres) may require additional refrigerant and impact system performance. Optimal installations minimise this distance while maintaining proper unit positioning.
Access and Site Limitations
Multi-Storey Installations
Second-storey installations require specialised equipment and techniques for safe outdoor unit mounting. Professional installers have the expertise and equipment to handle these complex installations.
Apartment and Townhouse Considerations
Body corporate approval and compliance with building bylaws may be required. Professional installers understand these requirements and can guide the approval process.
Seasonal Considerations for Installation
Split system installation timing can impact both cost and convenience, with certain seasons offering advantages for homeowners.
Off-Peak Installation Benefits
Installing during autumn or spring often provides cost savings and better technician availability. Avoiding peak summer and winter demand periods can reduce wait times and potentially lower costs.
Weather-Related Factors
Extreme weather conditions can impact installation scheduling and complexity. Professional installers plan installations around weather forecasts to ensure optimal working conditions.
Technology Integration and Smart Features
Modern split systems offer advanced connectivity and smart home integration options that enhance convenience and efficiency.
Smart Connectivity Options
Wi-Fi-enabled systems allow remote control via smartphone apps, enabling pre-cooling or heating before arriving home. Some systems integrate with smart home platforms for comprehensive automation.
Advanced Filtration Systems
Many modern units include advanced air purification technology, removing allergens, bacteria, and odours from indoor air. These features particularly benefit households with respiratory sensitivities.
Quick Takeaways
- Professional installation is mandatory – Only licensed technicians can legally install split systems in Australia
- Proper sizing prevents problems – Systems should provide approximately 0.15 kW per square metre of floor space
- Location matters significantly – Indoor units perform best on exterior walls, positioned high and centrally
- Energy efficiency pays long-term – Inverter technology and high star ratings reduce operating costs substantially
- Regular maintenance extends lifespan – Monthly filter cleaning and annual professional service maintain optimal performance
- Australian Standards ensure safety – Compliance with AS/NZS standards protects your investment and family
- Installation timing affects cost – Off-peak seasons often offer better pricing and availability
Conclusion
Split system installation represents an excellent investment in home comfort and energy efficiency when executed by qualified professionals. The process, while technically complex, delivers reliable climate control that can serve your family for many years.
Understanding the installation process helps homeowners make informed decisions about system selection, positioning, and maintenance requirements. With proper professional installation and regular upkeep, your split system will provide efficient heating and cooling while maintaining compliance with Australian safety standards.
The key to successful split system installation lies in choosing experienced, licensed professionals who understand local requirements and industry best practices. Their expertise ensures your system operates safely, efficiently, and reliably throughout its service life.
For homeowners considering split system installation, consulting with qualified technicians provides personalised advice tailored to your specific property and requirements. Professional assessment ensures optimal system selection and positioning for maximum comfort and efficiency.
Ready to enjoy year-round comfort with professional split system installation? Contact the experienced team at Hart Air for expert advice and professional installation services that ensure optimal performance and long-term reliability.
